Description

3000L Diesel Ranger Trailer

Off-Road / Farm Use

FEATURES

• 3000 litre tank capacity.
• UV stabilised diesel grade polyethylene tank with 15 year warranty.

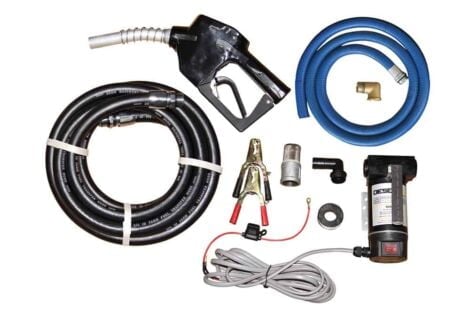

• 60 litre per minute Fluid diesel pump with 2 year warranty.
• Poly pump box protects pump from weather and helps secure diesel from theft.
• 6 metre x 20mm diesel grade hose with anti-kink spring.
• 4 metre battery cables for easy connection.
• Auto shut off nozzle.
• Galvanised steel trailer frame with 5 year warranty.
• Dual axles with heavy duty leaf spring suspension.
• 15″ wheels with Landcruiser hub pattern.
• All terrain tyres.
• Jockey wheel.
• 50mm tow hitch.
• 50 amp Anderson plug and cable.
• Galvanised, chequer plate mudguards.
• Pad lockable filler cap for diesel security.
• Splash-resistant breather designed to prevent spills while allowing safe tank ventilation.
• Ball Baffle system fitted in tank to stabilise and reduce liquid slosh and surge.
• Dimensions: 5000 x 2150 x 1850 (L x W x H mm).
• Approximate weight (kg): 920.
• Manufactured in Australia.
• Full manufacturers warranty and after sales support on diesel trailers.
• Please note: No brakes or handbrake fitted to ‘On Farm’ models.

ADDITIONAL OPTIONS

• Mine Spec options.
• 120lpm high flow diesel pump.
• Spare wheel and mounting bracket.
• Digital flow meter.
• Site level tube.

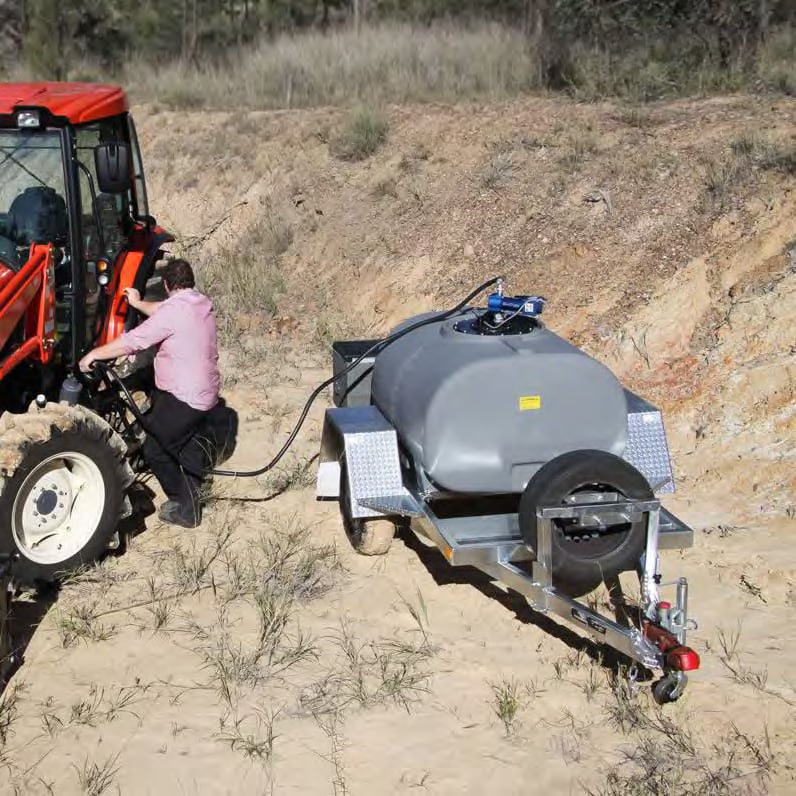

This 3000L Diesel Ranger Trailer, designed for reliable onsite diesel transfer and refuelling. It features a tough poly diesel tank mounted on a galvanised steel frame perfect for moving diesel fuel around your property or job site.

It’s a practical option for civil and farms sites needing access to transportable diesel tanks. Practical for you to refuel machinery and equipment directly in the field, saving time, reducing machine downtime, and avoiding the need to move heavy machinery back to a fixed point. Built to meet Australian standards, this trailer delivers dependable diesel storage and transport wherever it’s needed.

For further information into our huge range of diesel tanks and trailers, please reach out to our helpful team.

DISCLAIMER:

The on farm Diesel Ranger trailer isn’t built for road use and can’t be registered for on road driving. The on farm trailer does not have brakes and LED lighting to comply with road registration requirements. Trailer dimensions may vary due to the manufacturing process and images are indicative only. Diesel trailer specifications and inclusions are listed above.

3000L Diesel Ranger Trailer.
