Description

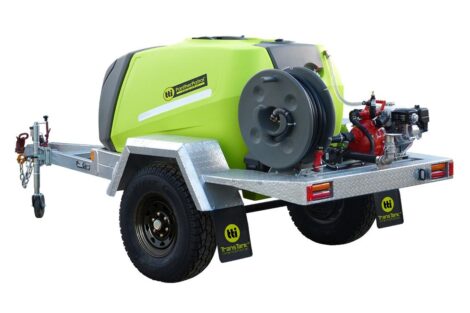

1100L Mobile Water Trailer

Off-Road / Farm Use

FEATURES

• 1100 litre capacity water / fire fighting trailer.
• Tough UV stabilised polyethylene tank with 25 year warranty.
• Honda GX200 petrol engine with 5 year manufactures warranty.
• Davey twin impeller fire pump 400 litres per minute open flow.
• 36 metres of 19mm heavy duty hose reel, with locking catch.
• Adjustable twist action nozzle.
• Ball baffle system fitted to improve stability and reduce slosh and surge in transit.
• Heavy duty hot dipped galvanised steel trailer frame with 5 year warranty.
• 15″ Landcruiser wheels with 6 stud hubs and 6 ply radial tyres.
• 65mm 2T rated galvanised single axle trailer with heavy duty leaf spring suspension.
• Chequer plate steel mudguards.
• Jockey wheel.
• 50mm tow hitch.
• 6 metre bottom fill kit with bracket.  Quickly fill the tank through the pump from an external water source.
• Camlock fittings on bottom fill kit for quick connection.
• Rear pump plate and hose reel for operator safety.
• Adjustable pressure regulator with return line to tank.
• Strong lockable 455mm hinged lid with an enclosed toolbox to keep gear protected and easy to access.
• Lever ball valve on tank outlet.
• Includes a 10L handwash tank with tap and a 70L flush tank to help clean up after spraying or refilling.
• Dimensions 3885(L) x 1910(W) x 1565(H) (mm).
• Approximate weight 580kg.
• Manufactured in Australia.
• Please note: no brakes or handbrake fitted to ‘On Farm’ models.

ADDITIONAL OPTIONS

• Honda GX200 electric start engine with battery pack.
• Yanmar diesel, recoil or electric start engine.
• Quick-fill hydrant fillers; overhead funnel or plumbed to side of tank.
• Dust suppression deflector sprayers and dribble bars.
• Full Mine spec options.

The TTi PantherPatrol™ range provides a reliable and secure way to carry water for firefighting and a range of property and worksite needs.

The fully load-rated, hot-dipped galvanised trailer is paired with a baffled tank for added stability, while 15-inch LandCruiser wheels provide good ground clearance and mobility across farms, properties and worksites. Easy-to-clean checker plate mudguards add to its practical design.

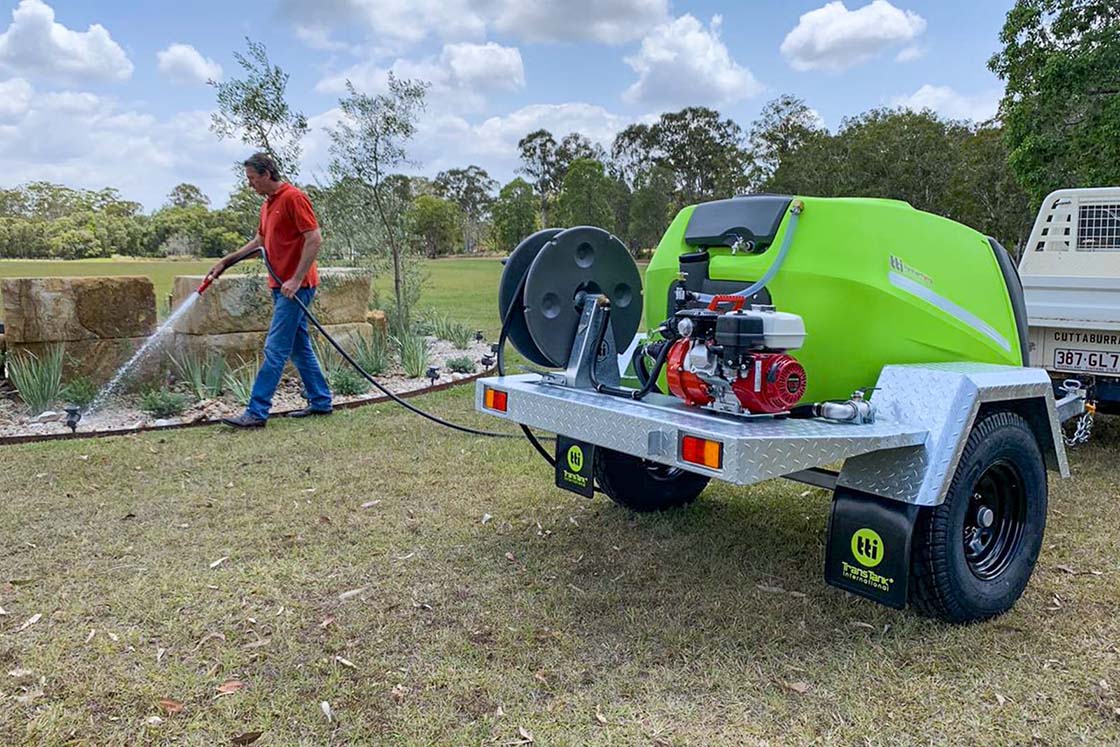

Ideal for fire suppression, burn-offs, property protection, back burning, water transfer, watering trees, washdown and dust suppression, the PantherPatrol™ is a versatile trailer for when you need dependable water on hand.

For further insights into our huge range of fire fighting and water tanks, please reach out to our helpful team.

DISCLAIMER

The on farm trailer model does not comply with road registration requirements and can not be registered for on road use. The on farm trailer does not have brakes or LED lighting to comply with road registration requirements. Fire water trailer dimensions may vary slightly due to manufacturing process.

1100L Mobile Water Trailer.
