Description

10,000L Self Bunded Diesel Fuel Tank

12 Volt Power Supply

FEATURES

• 10,000 litre capacity, Double walled self bunded.
• UV stabilised and flame retardant external bunded tank and cabinet.
• 110% bunding capacity to comply with AS3780
• 5 year manufactures warranty.
• Italian made 70 lpm 12 volt Piusi pump.
• Auto shut-off diesel nozzle.
• 6 metre anti-kink delivery hose.
• Digital level indicator.
• High / low level and bund alarm.
• Built in breather to vent fumes.
• Mechanical overfill protection.
• Power control box with Emergency stop function.
• Auto timeout after 10 minutes of continual use.
• 30 micron water filter capture.
• 2″ camlock and ball valve for quick filling.
• Mechanical fluid meter.
• Lockable cabinet to secure diesel pump and equipment.
• Dimensions 2500 x 3062 x 2710 (L x W x H mm).
• Australian made.

ADDITIONAL OPTIONS

• 160W Solar panel kit complete with mounting bracket and cable.
• 240 volt, 70l/min Piusi diesel pump.

Safely stored and dispense diesel onsite from these bunded diesel tanks. Australian made and compliant to Australian standards these stationary onsite diesel tanks are designed for agriculture, civil and mine sites use. The bunded tank has double walls, emergency stops and bunding alarms to prevent and contain diesel overflow and spills. Quick refueling from the 12 volt, 70lpm Piusi diesel pump will ensure onsite downtime is minimal and the filter system protects your fleet’s equipment.

The polymaster ranger bunded diesel tanks are delivered to site and ready for operation once the power supply is connected and filled with diesel.

Extract – AS1940-2017 Storage and handling of flammable and combustible liquids 2.2.5.2 Polyethylene or composite storage tanks for minor storage. This clause specifies requirements for the storage of combustible liquids within above-ground polyethylene storage tanks that are rotationally moulded in one piece seamless construction in accordance with AS/NZS 4766, or composite tanks, as follows:
a. The maximum capacity of such tanks shall not be exceeded.
b. Such tanks shall have provision to dissipate static electricity and prevent splash filling.
c. Such tanks shall have sufficient means for venting to prevent damage to the tank as a
result of normal operational use of the tank.

DISCLAIMER: The 10,000L self bunded diesel fuel tank images are indicative only. Quoted pump flow rates are open flow. Flow rates in real world applications will vary. Tank dimensions may vary slightly due to the manufacturing process.

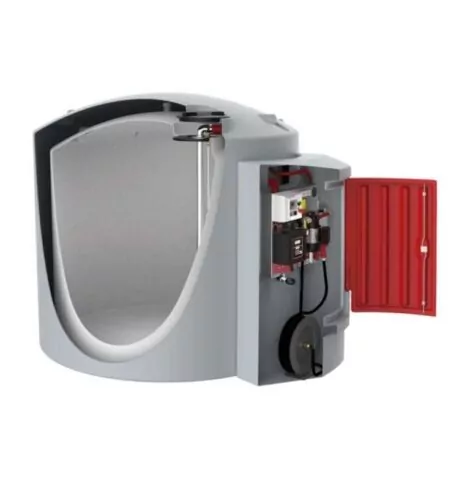

Self bunded diesel fuel tank.
